Create Standard Primitives

Qubicle offers a variety of standard primitive shapes to begin your Voxel Matrix.

How to Create a Standard Primitive

1. Choose a primitive from the Create menu
2. Adjust Options
3. Click Preview to preview results and OK to confirm

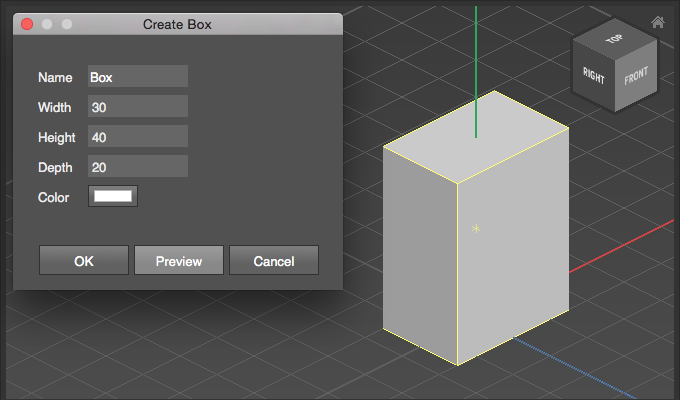

Options For Create Box, Sphere, Cylinder, Cone, Pyramid

Option	Description
Name	Sets the name of the new object.
Width Height Dimension	Sets the dimensions.
Color	Sets the voxels' color used to build the shape.

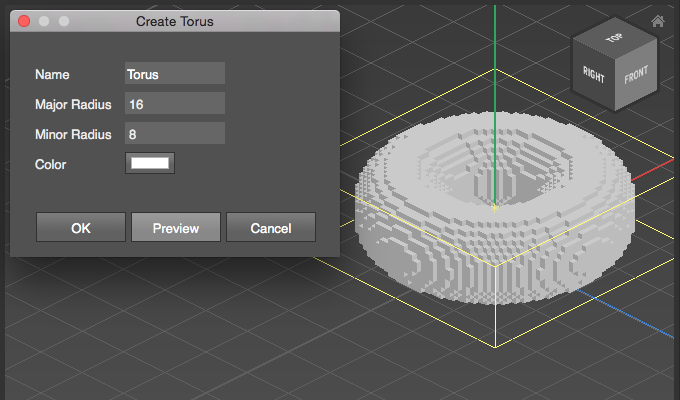

Options For Create Torus

Option	Description
Name	Sets the name of the new object.
Major Radius	Sets the outer radius. Determines the width and depth.
Minor Radius	Sets the tube radius. Determines the height.
Color	Sets the voxels' color used to build the shape.

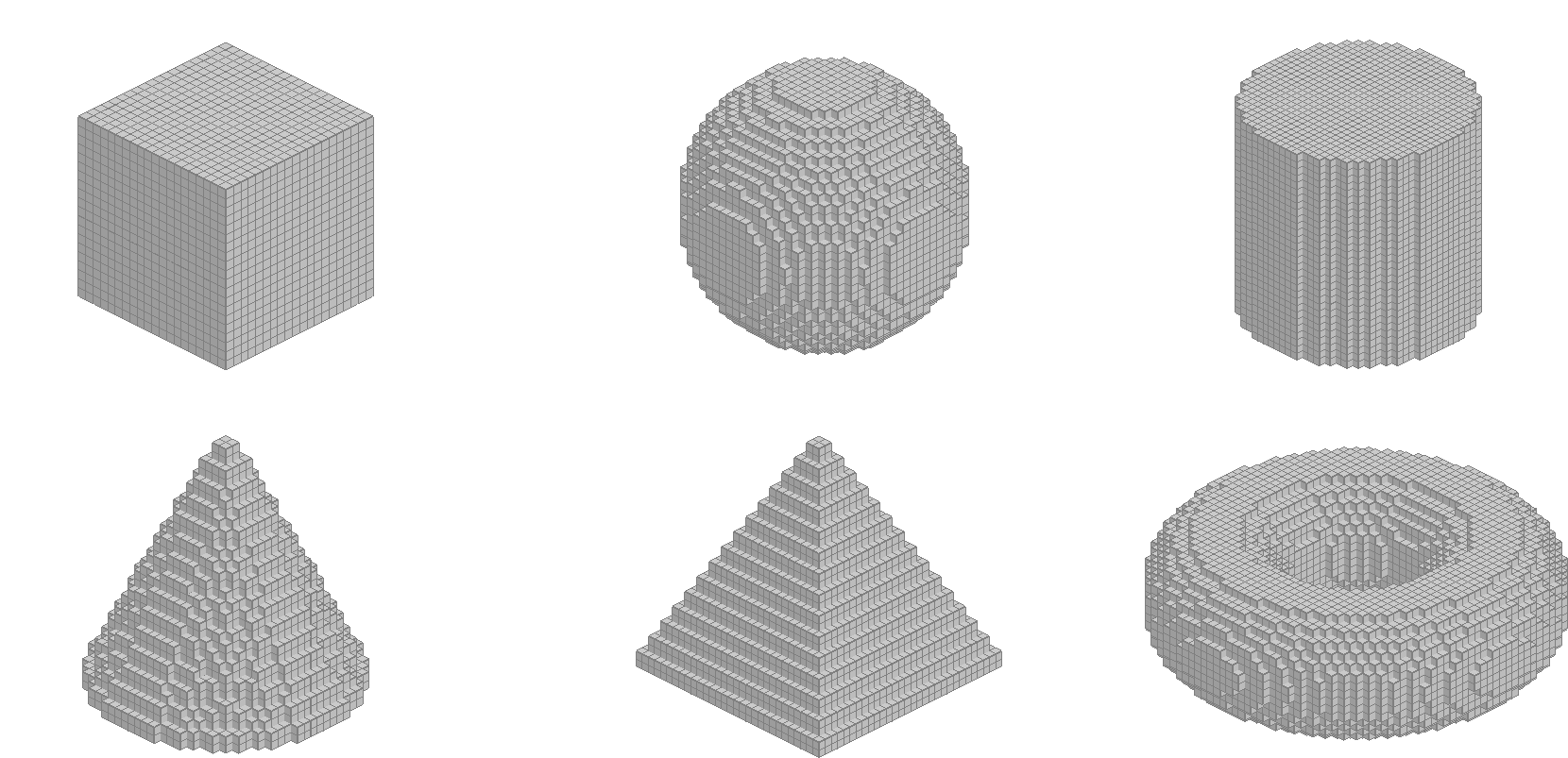

Examples
